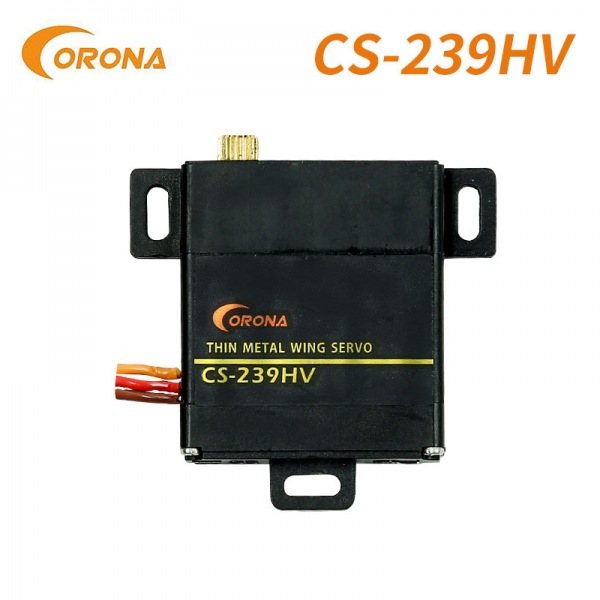

Corona CS239HV Mini Analog Slim Wing Servo Metal Gear 4.6kg / 0.13sec / 22g / 7.4V For RC Glider Plane Fixwing UAV drone
$10.00
Availability:
In stock
SKU
CS239HV
| Item No： | CS239HV |
| Size： | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Weight： | 22g(0.77OZ) |
| Voltage： | 6.0V /7.4V |
| Current： | 300mA / 400mA |
| Operating speed： | 0.14sec.60º/ 0.13sec.60º |
| Stall Torque： | 4.kg.cm / 4.6kg.cm |
| Dead Band： | ≤5uSec |
| Operating Travel： | 40º/one side pulse traveling 400us |
| Potentiometer | 3 slider/IndirectDrive |
| Ball bearing | MR85x2 |
| Gear | Metal |
| Motor | Metal brush motor |
| Spline count | 21T |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
