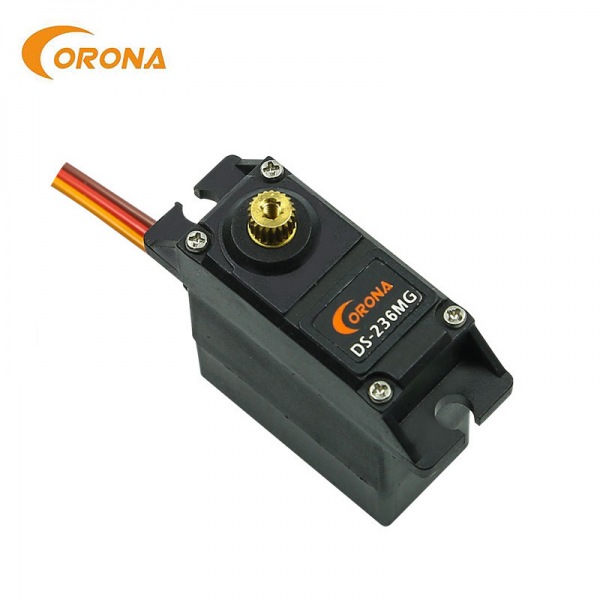

Corona DS236MG Mini Digital Servo Metal Gear 6.0kg / 0.15sec / 29g / 6.0V for RC AirPlane UAV drone
$12.50
Availability:
In stock
SKU
DS236MG
| Item No | DS236MG |

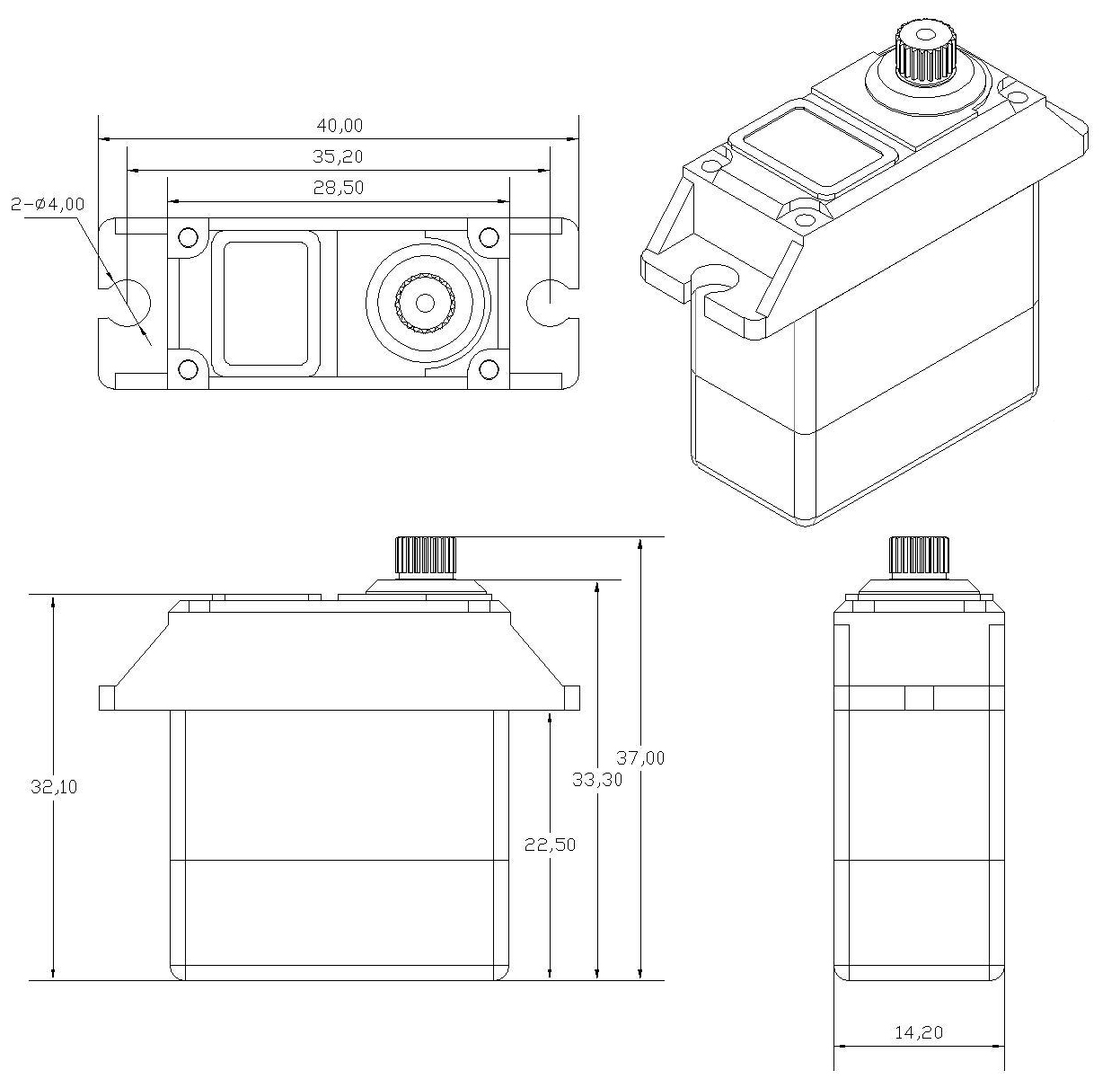

| Size | 28x14x32mm(1.11"x0.55"x1.26") |
| Weight | 29g(1.02OZ) |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 300mA / 400mA |
| Operateing speed | 0.16sec.60º/ 0.15sec.60º |
| Stall torque | 5.01kg.cm / 6.0kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling 400us |
| Potentiometer | 3 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Motor | Coreless Motor |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
