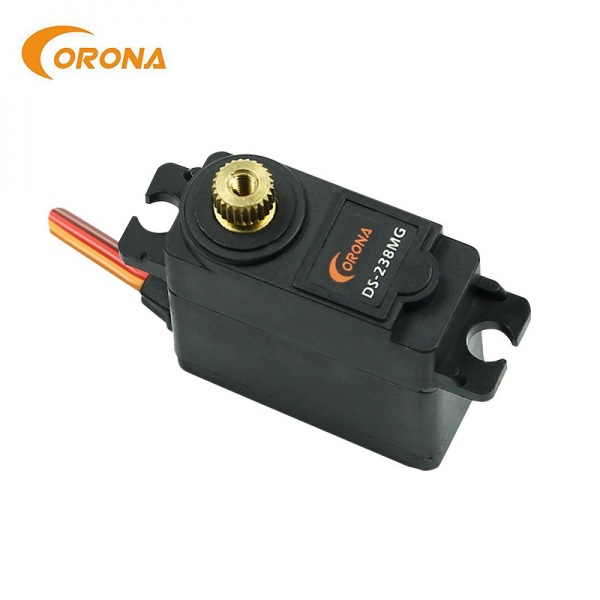

Corona DS238MG Mini Digital Servo Metal Gear 4.6kg / 0.14sec / 22g / 6.0V for RC AirPlane UAV drone
$11.00
Availability:
In stock
SKU
DS238MG
| Item No | DS238MG |

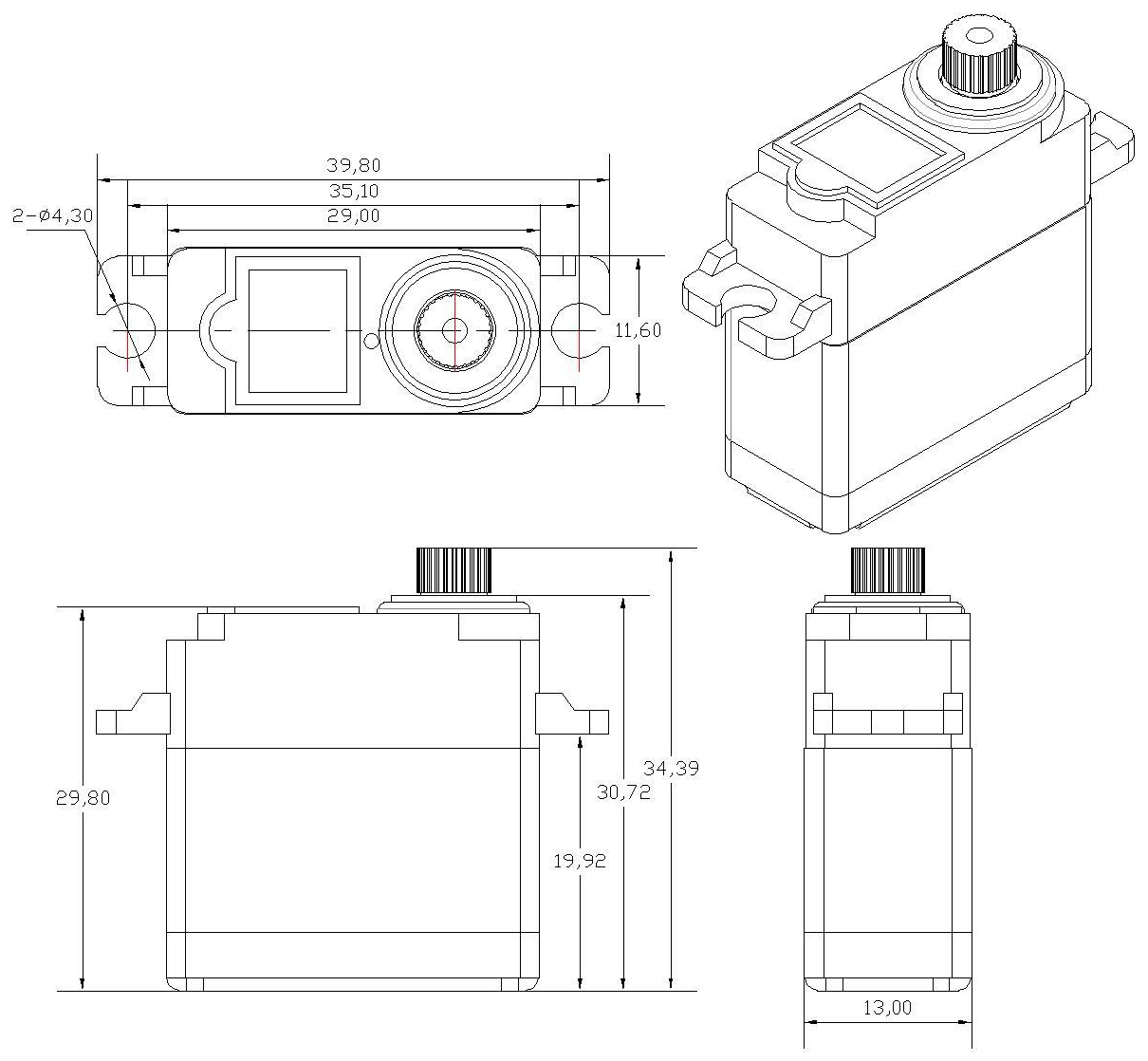

| Size | 29x13x30mm(1.14"x0.51"x1.18") |
| Weight | 22g(0.77OZ) |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 300mA / 400mA |
| Operateing speed | 0.15sec.60º/ 0.14sec.60º |
| Stall torque | 4kg.cm / 4.6kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling 400us |
| Potentiometer | 3 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Motor | Metal brush motor |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
