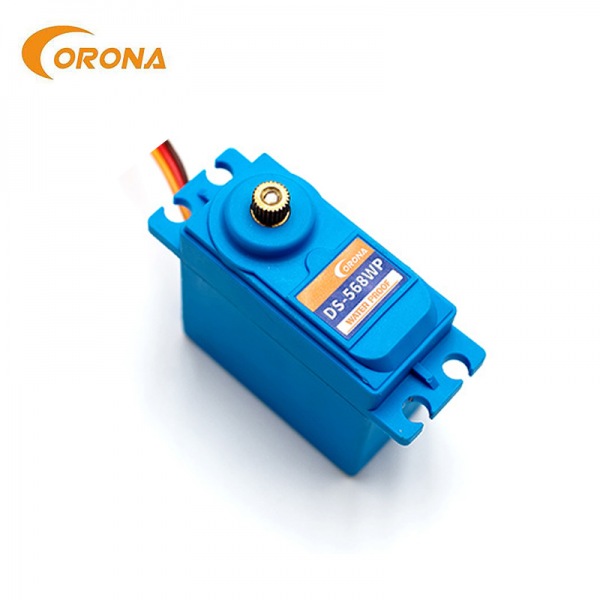

Corona DS568WP Waterproof Standard Digital Servo Metal Gear 20kg / 0.16sec / 69.6g / 8.4V for RC AirPlane UAV drone
$15.00
Availability:
In stock
SKU
DS568WP
| No | Item | Specification |
| 1-1 | Storage Temperature Range | -30℃---80℃ |
| 1-2 | Operating Temperature Range | -20℃---60℃ |
- Standard Test Environment
| No | Item | Specification |
| 2-1 | Temperature | 25℃±5℃ |
| 2-2 | Humidity | 65%±10% |

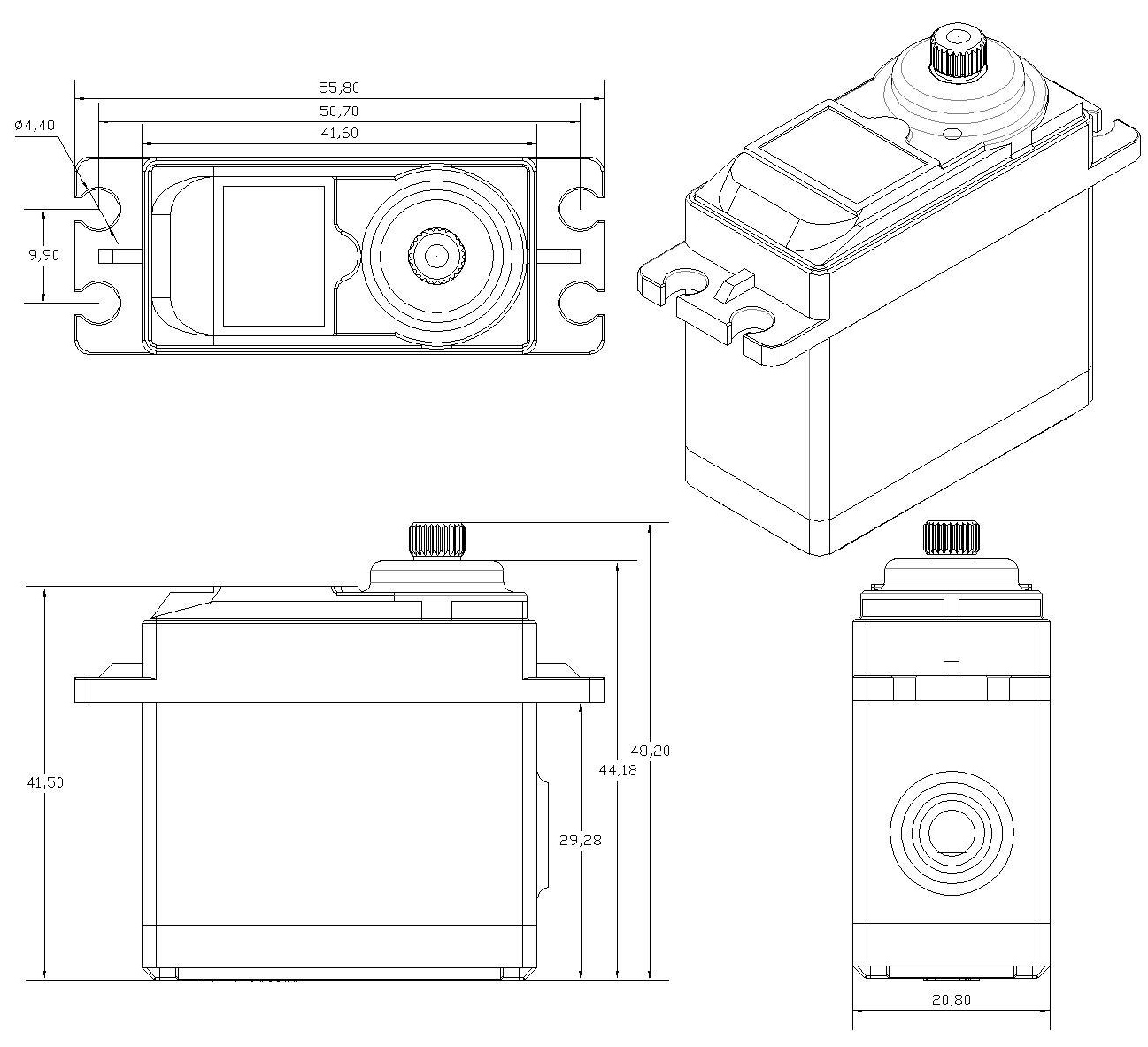

- Mechanical Specification
| No | Item | Specification |
| 3-1 | Size | 41.8x20.8x40.8mm(1.65"x0.82"x1.61") |
| 3-2 | Weight | 69.6g |
| 3-3 | Gear Type | Metals |
| 3-4 | Limit Angle | 180° |
| 3-5 | Bearing | MR106/MR126 |
| 3-6 | Spline Count | 25T |
| 3-7 | Horn Type | Plastic |
| 3-8 | Case | PBT |
| 3-9 | Connector cable | 275mm±5mm |
| 3-10 | Motor | metal brush motor |
| 3-11 | waterproof resistance | IPX8 waterproof |
- Function of the Performan：
| No | Operating Voltage Range | 6.0V | 8.4V |
| 4-1 | Tdle Current (at stopped) | 3mA | 3mA |
| 4-2 | No Load speed | 0.18sec.60º | 0.16sec.60º |
| 4-3 | Running current (at no Load ) | 300mA | 400mA |
| 4-4 | Stall torque | 16kg.cm | 20kg.cm |
| 4-5 | Stall current | 1.7A | 2.5A |
- Control Specification ：
| No | Item | Specification |
| 5-1 | Command signal | Pulse width modification |
| 5-2 | Amplifier Type | Digital Controller |
| 5-3 | Pulse width range | 900----2100µSEC |
| 5-4 | Running degree | 90° |
| 5-5 | Death width | 3µSEC |
| 5-6 | Rotating Direction | CW(1500-2000µS) CCW(1500-1000µS) |
