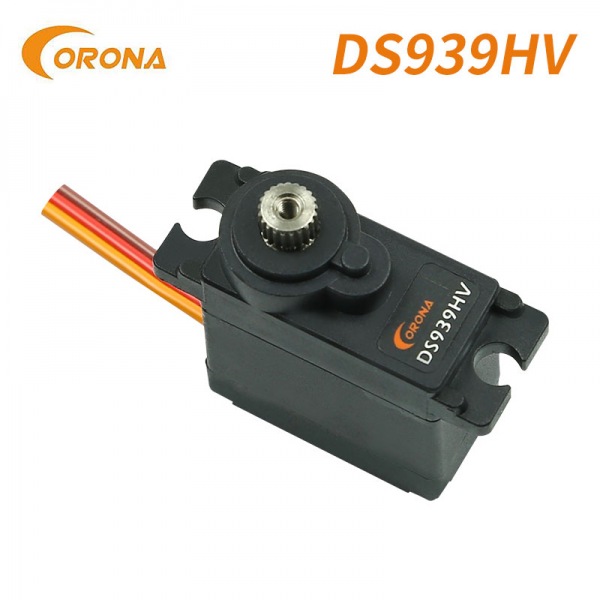

Corona DS939HV Mini Digital Servo Metal Gear 2.8kg / 0.12sec / 12.5g / 7.4V for RC AirPlane UAV drone
$10.50
Availability:
In stock
SKU
DS939HV
| Item No | DS939HV |

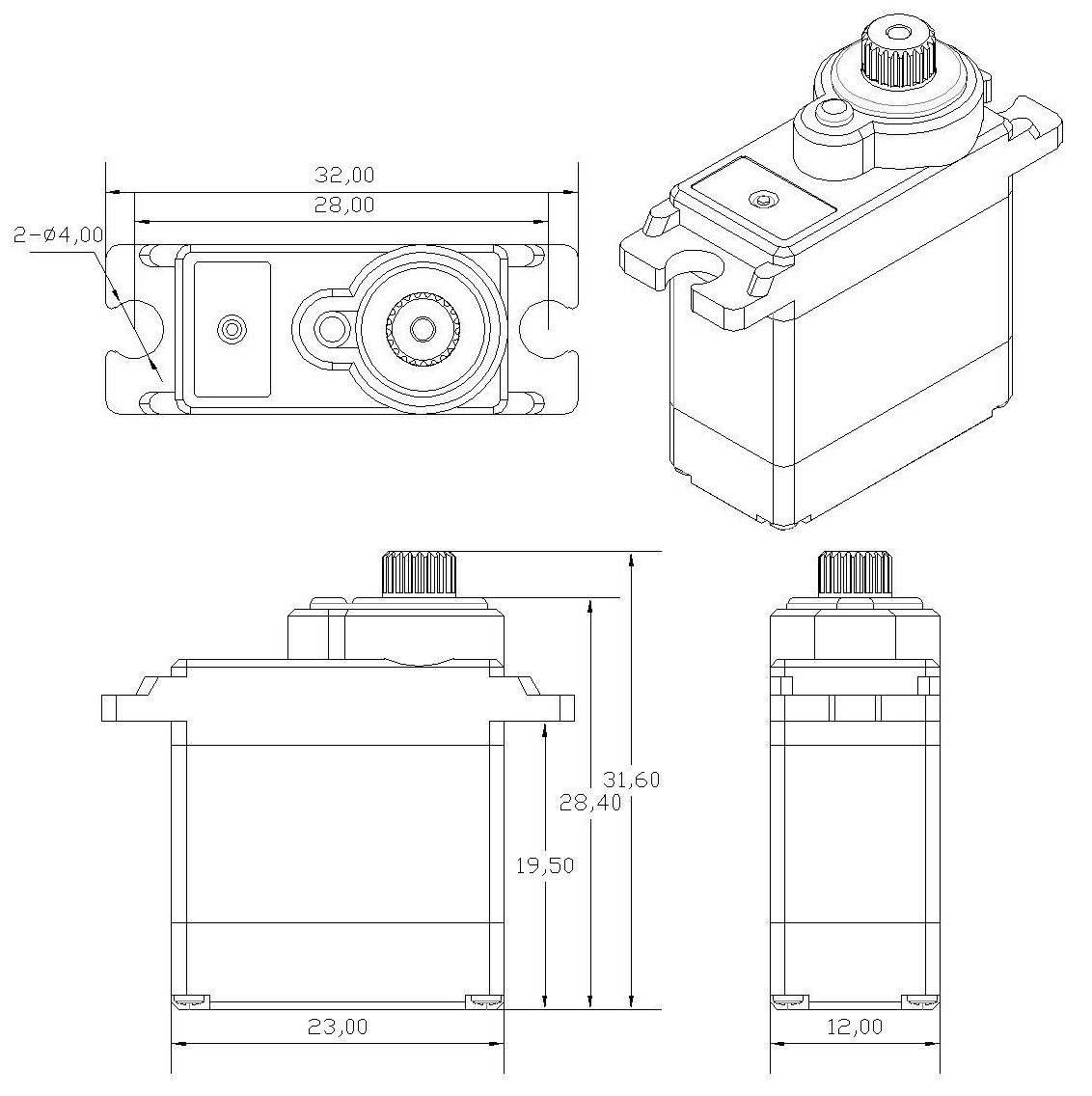

| Size | 22.5X11.5X24.6mm(0.88"x0.45"x0.96") |
| Weight | 12.5g |
| voltage | 6.0V / 7.4V |
| current | 200mA / 240mA |
| speed | 0.13sec.60º/ 0.12sec.60º |
| stall torque | 2.6kg.cm / 2.8kg.cm |
| Dead Band | ≤3uSec |
| Operating Speed | 40º/one side pulse traveling 400us |
| Potentiometer | 2 slider/direct Drive |
| Ball bearing | MR85 |
| Gear | Metal |
| Motor | Metal brush motor |
| Spline count | 21T |
| Connector wire length | 215mm |
| Operating Temperature | -20℃～+60℃ |
