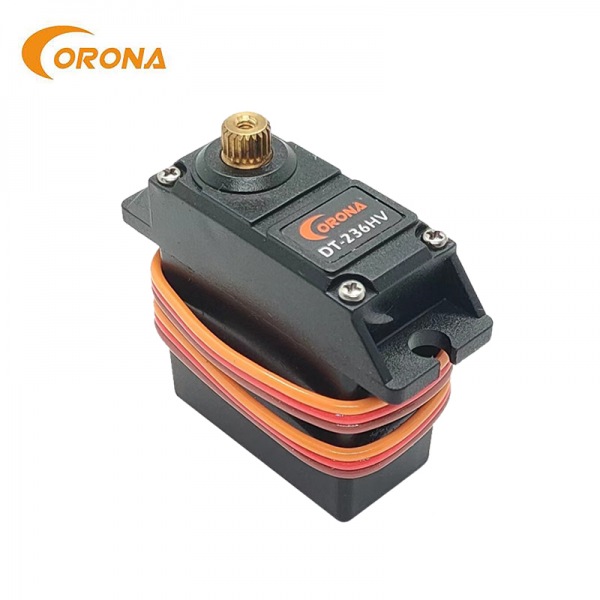

Corona DT236HV Mini Digital Servo Metal Gear 6.0kg / 0.14sec / 27g / 7.4V for RC AirPlane UAV drone
$12.00
Availability:
In stock
SKU
DT236HV
| Item No | DT236HV |
| Size | 28x14x32mm(1.11"x0.55"x1.26") |
| Weight | 27g(0.95OZ) |
| Operating Voltage | 6.0V / 7.4V |
| Operating Current | 320mA / 420mA |
| Operateing speed | 0.15sec.60º/ 0.14sec.60º |
| Stall torque | 5.0kg.cm / 6.0kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling 400us |
| Potentiometer | 3 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Motor | Metal brush motor |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
