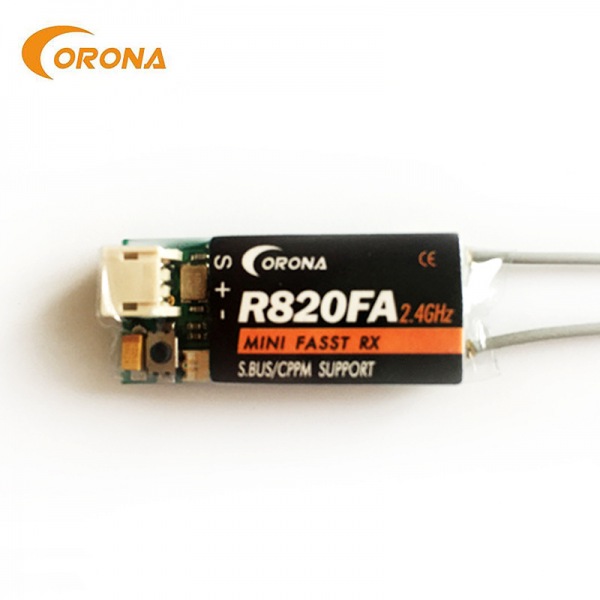

Corona R820FA Mini Fasst 2.4Ghz FUTABA FASST Compatible Receiver 10C 12FG 14SG 16SZ 16SG 18SZ for RC Drone

Bind procedure:

• Turn on the FASST transmitter
• Connect the battery to the receiver while pressing receiver’s F/S button.
• The Dual-color LED’s continuous will cycle through the following:
  • Red LED light (searching radio signal)
  • Green LED light (acquired the radio signal)
  • Red LED off (bind ok)
  • Green LED flashes 10 times (ID store in memory)
  • Green LED lights solid (normally operation)

Fail-safe setting:

TX-failsafe feature: This method is to set failsafe on the FASST transmitter (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.

Nore:

We highly recommend you set failsafe feature while flying your models. An example of a useful Failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.

Output mode setting:

If your receiver has been linked with your transmitter, please power off your transmitter. When your receiver’s LED light red, push down and hold the button on your receiver for more than 6 seconds and not more than 10 seconds, release the button to see the green led flash, push down the button again right now, receiver get back to light red. Now the MODE status has changed between S.BUS output mode and CPPM(continuous PPM signal on one wire) mode. When green led flash low indicate S.BUS mode to CPPM mode, and green led flash fast indicate CPPM mode to S.BUS mode. And power on the receiver again to take new feature effect.
Do not connect any servo directly to the RX, it maybe get abnormal action or get hot.
