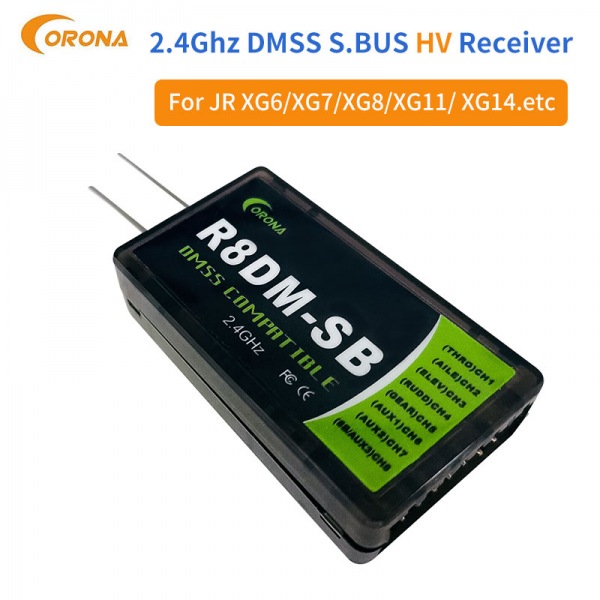

Corona R8DM-SB 2.4G JR DMSS Compatible receiver w/Sbus for XG6 XG7 XG8 XG11 XG14 transmitter

Feature:
- 8CH,6CH and 4CH servo channels in R8DM,R6DM and R4DM under normal status.
- S.BUS output support expanding servo channels on the 8th channel of R8DM, the 6th channel of R6DM and the 4th channel of R4DM under special status.
- 13mS latency under linked with XG7,and 14mS latency under linked with other transmitters.

Specifications:
- Voltage Range :3.6~8.5V
- Operating Current: 60mA max and 35mA under linked
- Operation temperature: -10~70 degree
- Latency: 13mS or 14mS
- Sensitivity: about -100dBm
- Weight: 11g

LED status indicated under normal working status:
RED GREEN status
on off No signal searched
off solid signal is very good
off flash signal is not very good
off off-flash signal is weak
