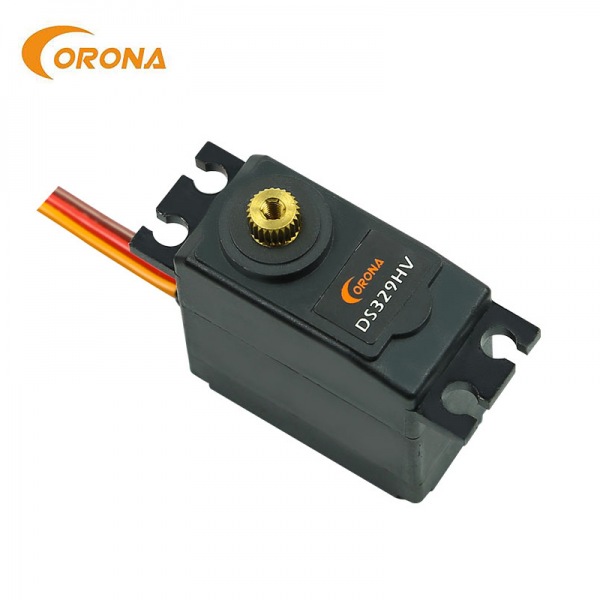

Corona DS329HV Medium Digital Servo Metal Gear 4.5kg / 0.09sec / 32g / 7.4V for RC AirPlane UAV drone
$11.20
Availability:
In stock
SKU
DS329HV
| Item No： | DS329HV |
| Size： | 32.5x17x34.5mm(1.28"x0.67"x1.36") |
| Weight： | 32g |
| Voltage： | 6.0V / 7.4V |
| Current： | 320mA / 420mA |
| Operating Speed： | 0.10sec.60º/ 0.09sec.60º |
| Stall Torque： | 4.0kg.cm / 4.5kg.cm |
| Dead Band： | ≤3uSec |
| Operating Travel： | 40º/one side pulse traveling 400us |
| Potentiometer | 5 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Motor | Metal brush motor |
| Spline count | 25T |
| Connector wire length | 300mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
