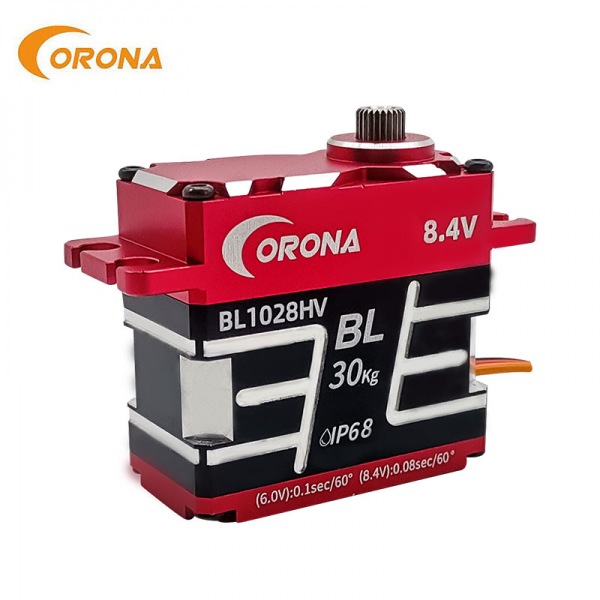

Corona BL1028HV Waterproof Standard Digital Brushless Servo Metal Gear 30kg / 0.08sec / 82g / 8.4V for RC AirPlane UAV drone
$59.00
Availability:
In stock
SKU
BL1028HV
BL1028HV is full metal brushless waterproof servo. It can be used in rc car and industrial application.
| Item No: | BL1028HV |

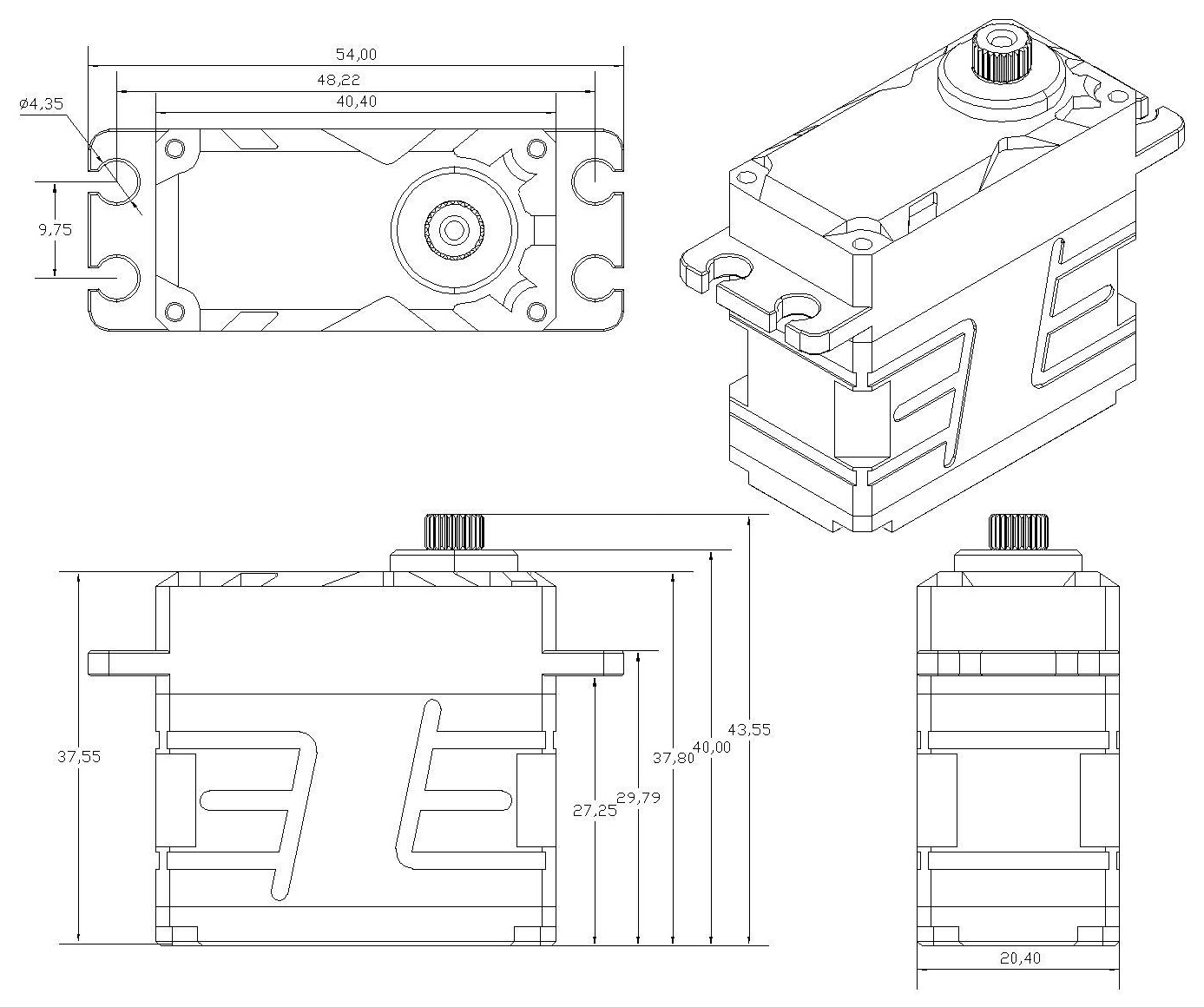

| Size: | 40×21×38mm(1.57"×0.8"x1.5") |
| Weight: | 82g |
| Operating Voltage: | 5.0V /6.0V /7.47 /8.4V |
| stand-by current: | 44mA |
| Working rate: | 0.12sec. 60° /0. 11sec. 60° /0. 10sec. 60°/0. 09sec. 60° |
| Stall Torque: | 16kg. cm I 17kg. cm/21kg. cm/ 25kg. cm |
| Maximum stall torque: | 32kg. cm / 35kg. cm/ 42kg. cm/50kg. cm |
| Stall current | 2.2A/2.4A/3. 1A/3.6A |
| Waterproof performance | IP68 |
| Dead Bandwidth: | ≤1uSec |
| work plan: | 40°/unilateral pulse stroke 400us |
| Potentiometer Type: | Square high precision indirect drive |
| High-precision rolling bearings: | MR106 |
| Gear Material: | Metal |
| Motor | Brushless motor |
| Spline Count | 25T |
| Cable length: | 290m |
| Operating temperature: | -20C~+60C |
