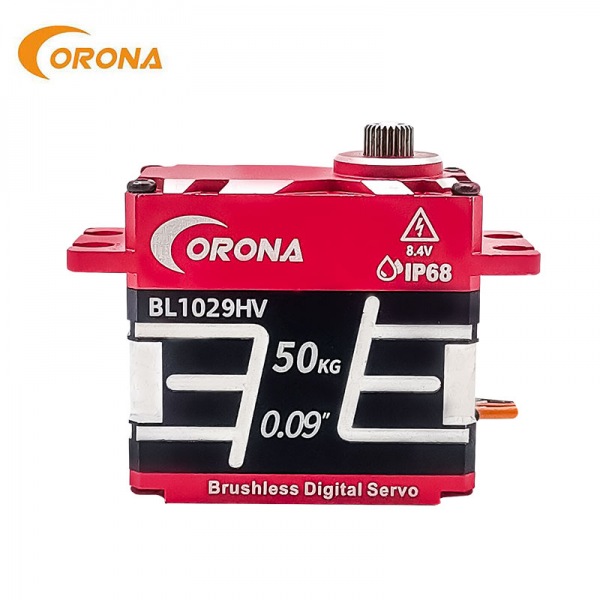

Corona BL1029HV Waterproof Standard Digital Brushless Servo Metal Gear 50kg / 0.09sec / 82g / 8.4V for RC AirPlane UAV drone
$50.00
Availability:
In stock
SKU
BL1029HV
BL1029HV is full metal brushless waterproof servo. It can be used in rc car and industrial application.
|
No |
Item |
Specification |
|
1-1 |
储存温度 Storage Temperature Range |
-30℃---80℃ |
|
1-2 |
运行温度 Operating Temperature Range |
-20℃---60℃ |
2.测试环境： Standard Test Environment
|
No |
Item |
Specification |
|
2-1 |
温度 Temperature |
25℃±5℃ |
|
2-2 |
湿度 Humidity |
65%±10% |
|
|
|
|
3.机械特性 ： Mechanical Specification
|
No |
Item |
Specification |
|
3-1 |
尺寸 size |
40X21X38mm |
|
3-2 |
重量 Weight |
82g |
|
3-3 |
齿轮类型 Gear Type |
金属 |
|
3-4 |
机构极限度 Limit Angle |
180° |
|
3-5 |
轴承 Bearing |
MR106 |
|
3-6 |
输出齿齿数 Spline Count |
25T |
|
3-7 |
舵臂 Horn Type |
塑料 |
|
3-8 |
外壳 Case |
金属 |
|
3-9 |
舵机线 connector cable |
290mm±5mm |
|
3-10 |
马达 Motor |
brushless motor |
|
3-11 |
防水性能 waterproof resistance |
IP68 |
4.电气性能 Function of the Performan：
|
No |
工作电压 Operating Voltage Range |
6.0V |
8.4V |
|
4-1 |
静态电流 Tdle Current (at stopped) |
44mA |
44mA |
|
4-2 |
空载速度 No Load speed |
0.11sec.60º |
0.09sec.60º |
|
4-3 |
空载电流 Running current (at no Load ) |
300mA |
360mA |
|
4-4 |
堵转扭矩 Stall torque |
35kg.cm |
50kg.cm |
|
4-5 |
堵转电流 Stall current |
2.4A |
3.6A |
5.控制特性 Control Specification ：
|
No |
Item |
Specification |
|
5-1 |
控制信号 Command signal |
Pulse width modification |
|
5-2 |
放大器类型 Amplifier Type |
Digital Controller |
|
5-3 |
脉冲宽度范围 Pulse width range |
900----2100µSEC |
|
5-4 |
旋转角度 Running degree |
90° |
|
5-5 |
死区宽度 Death width |
1µSEC |
|
5-6 |
旋转方向 Rotating Direction |
CW(1500-1000µS) CCW(1500-2000µS) |
