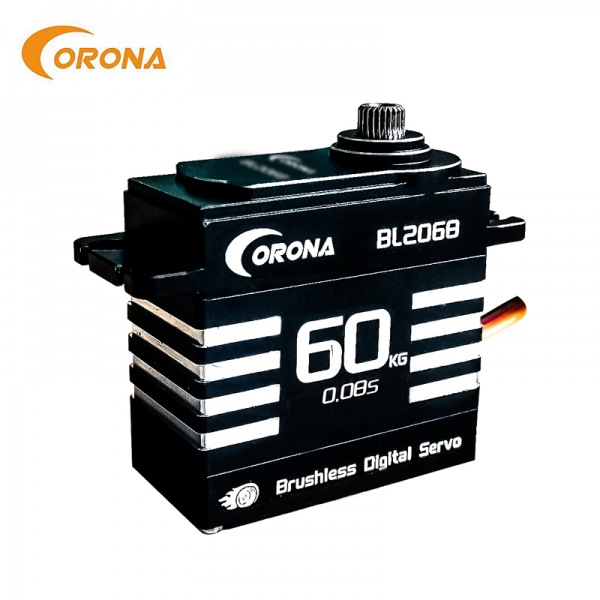

Corona BL2068HV Waterproof Standard Digital Brushless Servo Metal Gear 60kg / 0.08sec / 88g / 8.4V for RC AirPlane UAV drone
$70.00
Availability:
In stock
SKU
BL2068HV
|
Part name :BL2068HV Digital servo |
|
Model No： BL2068HV |
- Apply Environmental Condition
|
No |
Item |
Specification |
|
1-1 |
Storage Temperature Range |
-30℃---80℃ |
|
1-2 |
Operating Temperature Range |
-20℃---60℃ |
- Standard Test Environment
|
No |
Item |
Specification |
|
2-1 |
Temperature |
25℃±5℃ |
|
2-2 |
Humidity |
65%±10% |
- Mechanical Specification
|
No |
Item |
Specification |
|
3-1 |

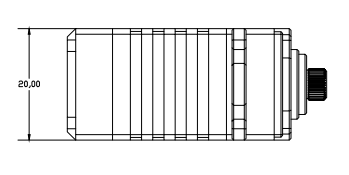

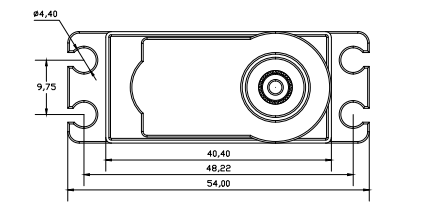

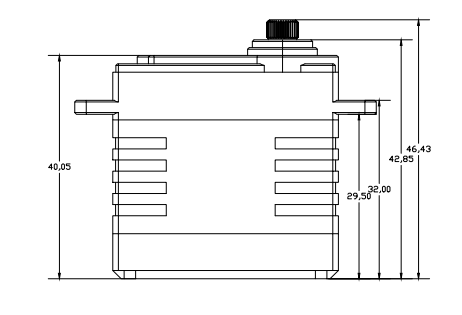

size |
41X20X40mm |
|
3-2 |
Weight |
88g |
|
3-3 |
Gear Type |
Metal |
|
3-4 |
Limit Angle |
180° |
|
3-5 |
Bearing |
MR106 |
|
3-6 |
Spline Count |
25T |
|
3-7 |
Horn Type |
Plastic |
|
3-8 |
Case |
Metal |
|
3-9 |
Connector cable |
295mm±5mm |
|
3-10 |
Motor |
Brushless motor |
|
3-11 |
Waterproof resistance |
IP68 |
- Function of the Performan：
|
No |
Operating Voltage Range |
6.0V |
8.4V |
|
4-1 |
Tdle Current (at stopped) |
44mA |
44mA |
|
4-2 |
No Load speed |
0.1sec.60º |
0.08sec.60º |
|
4-3 |
Running current (at no Load ) |
300mA |
360mA |
|
4-4 |
Stall torque |
50kg.cm |
60kg.cm |
|
4-5 |
Stall current |
3.5A |
4.2A |
- Control Specification ：
|
No |
Item |
Specification |
|
5-1 |
Command signal |
Pulse width modification |
|
5-2 |
Amplifier Type |
Digital Controller |
|
5-3 |
Pulse width range |
900----2100µSEC |
|
5-4 |
Running degree |
90° |
|
5-5 |
Death width |
1µSEC |
|
5-6 |
Rotating Direction |
CW(1500-1000µS) CCW(1500-2000µS) |
