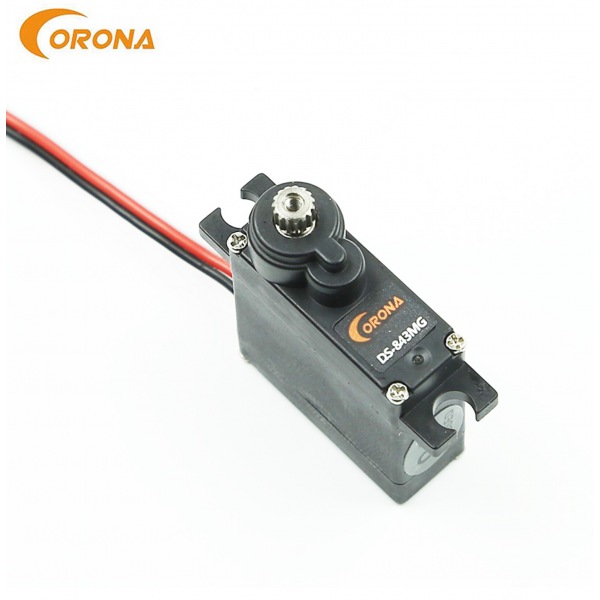

Corona DS843MG Micro Digital Servo Metal Gear 4.8kg / 0.10sec / 8.5g / 6.0V for RC Air Plane UAV drone
$9.17
Availability:
In stock
SKU
DS843MG
Corona digital servos are a must for the discerning pilot. They have higher resolution, accurate positioning, faster control response, constant torque throughout the servos travel, increased holding power and a really tight deadband.
The Corona DS-843MG metal geared servo is not only fast (0.10sec/60°) but it has an incredible amount of torque (4.8kg) which for a servo weighing only 8.5g is quite something.
Features:
• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout servo travel
• Excellent holding power
• Tight deadband
• Quick acceleration
• High torque
Specifications:
Model: DS-843MG
Operating Voltage: 4.8~6V
Speed: 0.12- 0.10sec/60°@6v
Torque: 4.0-4.8kg@6V
Gears: Metal
Motor: Coreless
Bearing: Ball bearing
Amplifier: Digital with Mosfet drive
Weight: 8.5g(with cale 11.5g)

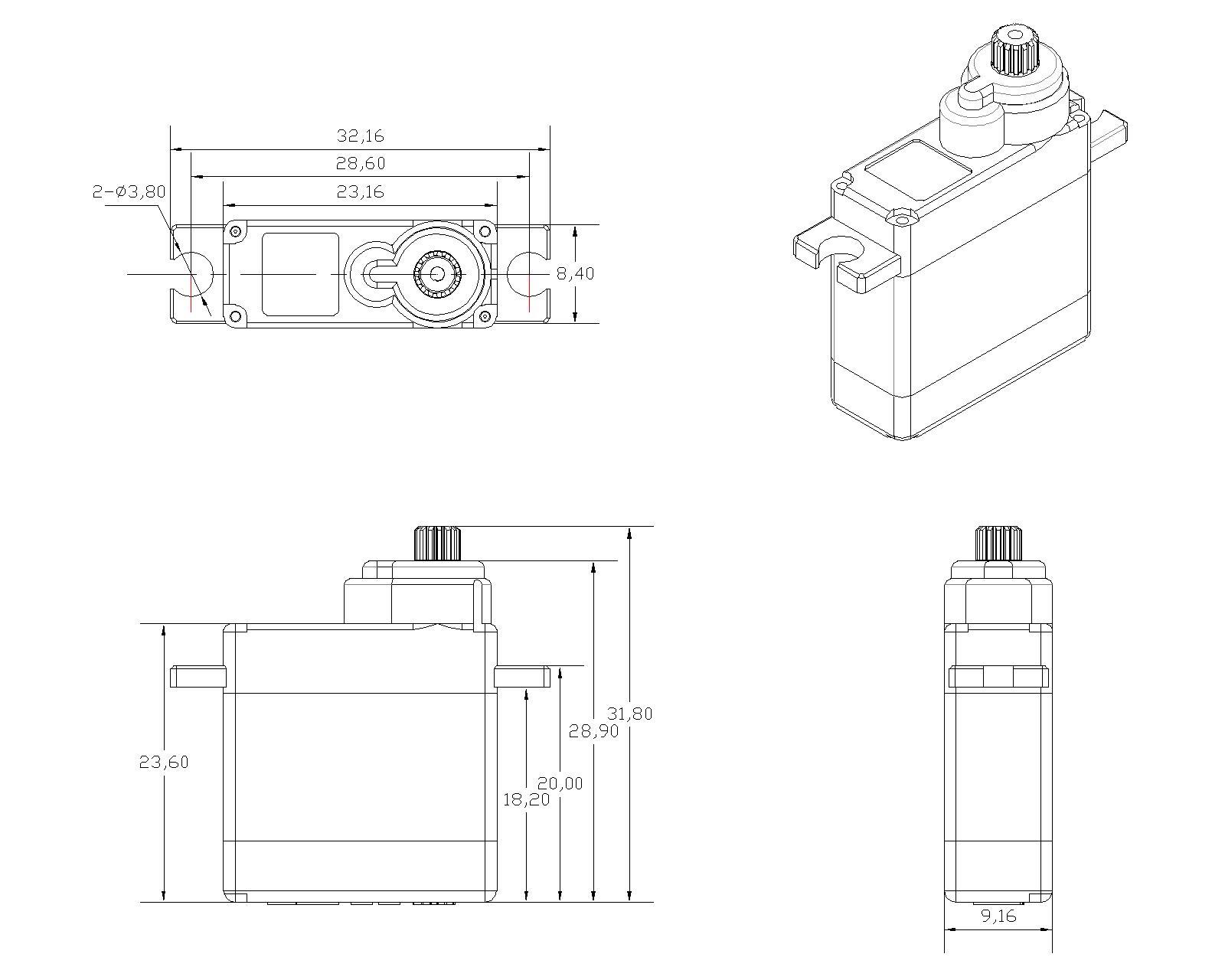

Dimensions: as below picture
Servo Plug: JR type
Servo Lead Length: 190mm
Spline count: 15
| Item No | DS843MG |
| Size | 23x9x23mm(0.9"x0.35"x0.9") |
| Weight | 8.5g |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 200mA / 220mA |
| Operateing speed | 0.12sec.60º/ 0.10sec.60º |
| Stall torque | 4.0kg.cm / 4.8kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling 400us |
| Potentiometer | High precision of Japan origin |
| Ball bearing | MR74 |
| Gear | Metal |
| Motor | brush motor |
| Connector wire length | 200mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
