Corona DS239MG Mini Digital Servo Metal Gear 4.6kg / 0.15sec / 22g / 6V For RC Glider Plane Fixwing UAV drone
$10.22
Availability:
In stock
SKU
DS239MG

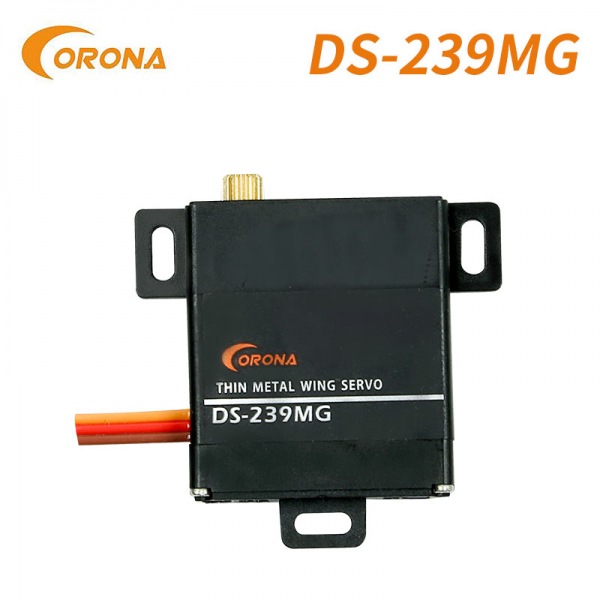

Corona DS-239MG Digital Slim Wing Servo (Metal Gear) 4.6kg / 0.15sec / 22g
Specifications:
Model: DS-239MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed: 0.15sec.60°/ 0.14sec.60°
Stall Torque: 4.0kg.cm / 4.6kg.cm
Size: 30X10X34.5mm
Weight: 22g
Dead Band: ≤3uSec
Operating Travel: 40°/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR85x2
Gear: Metal
Gear Type: Digital
Motor: Brushed
Connector wire: 215mm
Operating Temperature Range: -20°C+60°C
Spline count: 21
| Item： | DS239MG |
| Size： | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Weight： | 22g(0.77OZ) |
| Voltage： | 4.8V / 6.0V |
| Current： | 300mA / 400mA |
| Operating speed： | 0.15sec.60º/ 0.14sec.60º |
| Stall Torque： | 4.kg.cm / 4.6kg.cm |
| Dead Band： | ≤3uSec |
| Operating Travel： | 40º/one side pulse 400us |
| Potentiometer | 3 slider/indirect Drive |
| Ball bearing | MR85X2 |
| Gear | Metal |
| Motor | metal brush motor |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
