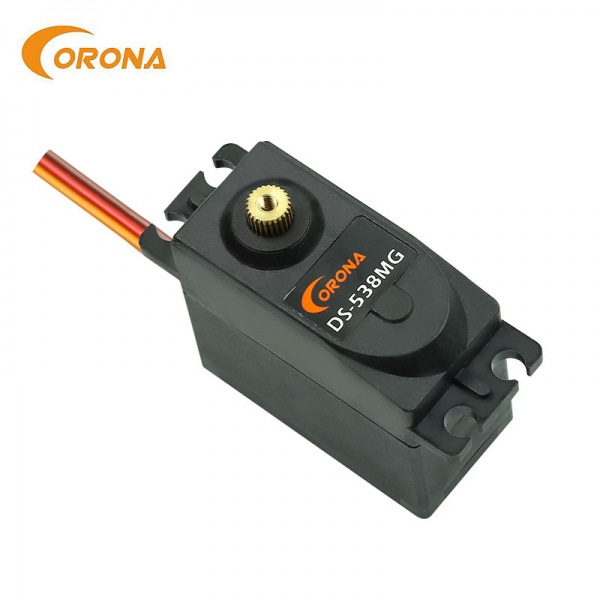

Corona DS538MG Standard Digital Servo Metal Gear 7kg / 0.13sec / 58g / 6.0V for RC AirPlane UAV drone
$10.78
Availability:
In stock
SKU
DS538MG
| Item No： | DS538MG |
| Size： | 20x40x38.5mm(0.78"x1.57"x1.51") |
| Weight | 58g |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 300mA / 400mA |
| Operating Speed | 0.14sec.60º/ 0.13sec.60º |
| Stall Torque | 6.5kg.cm / 7kg.cm |
| Dead Band | ≤3uSec |
| Operating Travel | 40º/one side pulse traveling 400us |
| Potentiometer | 5 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Motor | Metal brush motor |
| Spline count | 25T |
| Connector wire | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
