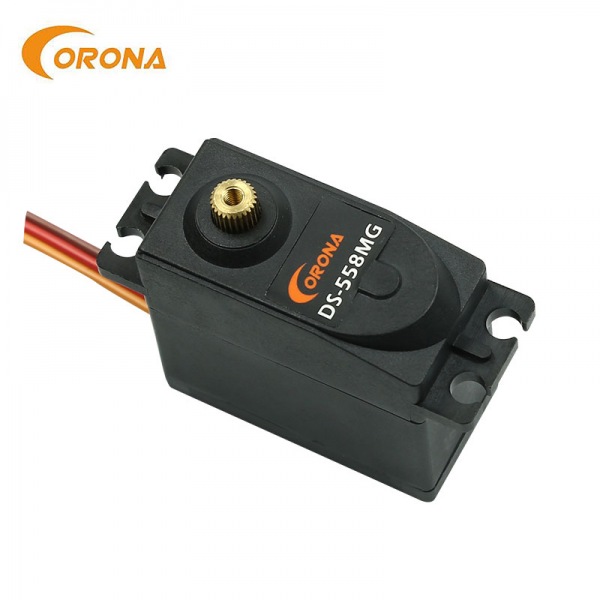

Corona DS558MG Standard Digital Servo Metal Gear 10kg / 0.20sec / 58g / 6.0V for RC AirPlane UAV drone
$10.78
Availability:
In stock
SKU
DS558MG
| Item No | DS558MG |
| Size | 20x40x38.5mm(0.78"x1.57"x1.51") |
| Weight | 58g |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 300mA / 400mA |
| Operateing speed | 0.22sec.60º/ 0.2sec.60º |
| Stall torque | 9.4kg.cm / 10kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling 400us |
| Potentiometer | 5 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Motor | Metal brush motor |
| Spline count | 25T |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
